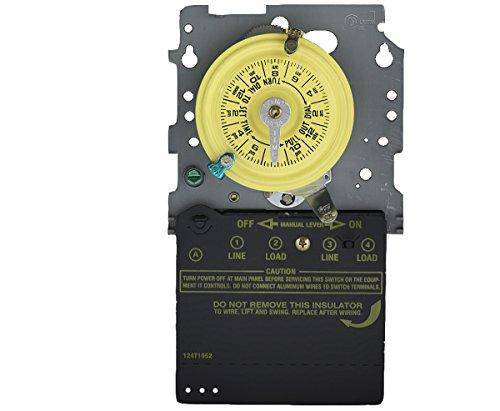

Intermatic T101M 24-Hour Mechanical Timer SPST Mechanism,Gray

Save $27.49

Price:
$54.50 $81.99
Stock:
In stock
Click to Check Availability

Description

Brand: Intermatic

Color: Gray

Features:

  • 120 VAC, SPST switch
  • Electrical loads up to 40 Amps
  • 1 to 12 on/off operations each day with minimum on/off times of 1 hour
  • Manual override, includes one On and one Off tripper
  • Wiring cover (Insulator) is used for multiple controls and the T101M only has 3 wire connection terminals
  • Wiring cover (Insulator) is used for multiple controls and the T101M only has 3 wire connection terminals

Binding: Lawn & Patio

Details: Product Description If you are replacing an existing T101 or T101R control you do not need to buy the whole unit, this mechanism fits into either enclosure. For any units that are SPST (Single Pole Single Throw) there will only be a total of 3 wiring terminals that will be used. There is a Neutral, Line, and Load terminal. The 2nd Line and Load terminals that may be seen on the insulator cover will not be used and will not be on the actual unit. Mechanism only. From the Manufacturer If you are replacing an existing T101 or T101R control you do not need to buy the whole unit – this mechanism fits into either enclosure. For any units that are SPST (Single Pole Single Throw) there will only be a total of 3 wiring terminals that will be used. There is a Neutral, Line, and Load terminal. The 2nd Line and Load terminals that may be seen on the insulator cover will not be used and will not be on the actual unit. Mechanism only. One year warranty.

Package Dimensions: 6.3 x 5.3 x 3.3 inches
